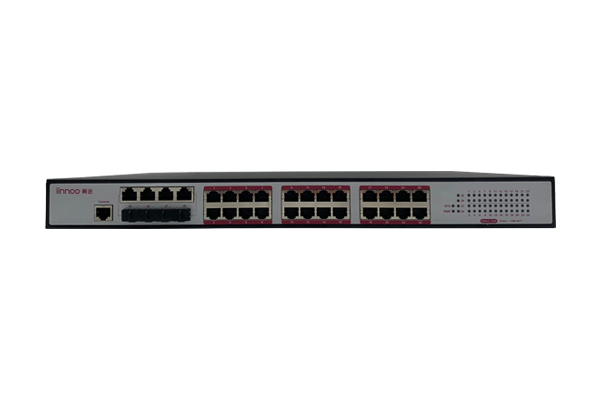

24Port PoE managed switch
Lo-gs3428cp-4c is a fully gigabit management POE switch. It adopts international standard POE technology and open network standards. It is suitable for indoor and outdoor high and low temperature environment, lightning proof and anti-interference, standard 1U rack installation, and applies to industrial 4K high definition large bit stream access application scenarios, from access, convergence, to small network core. Can provide efficient, reliable, fast transmission solutions. 24 10/100/1000 base-t Ethernet ports (POE ports), four Combo ports 100/1000 self-adaptive, each POE port supports ieee 802.3af /at standards, provides up to 30W, multi-mode port selection and combination modes, and large-backplane bandwidth. Ensure rATE-limiting forwarding for all ports and support various applications. The operating temperature ranges from 0 ° C to 55 ° C and the storage temperature ranges from -40 ° C to 85 ° C.
|
|
|
|
standards |
IEEE802.3、IEEE82.3u(100Base-TX和100Base-FX、 IEEE802.3x、IEEE82.3ab(1000Base-TX) 802.3af、802.1at IEEE802.3(Ethernet), IEEE82.3u(100base-tx, 100base-fx, Ieee 802.3x(Flow Control), IEEE 802.3AB (1000Base-TX) 802.3AF (POE standard over Ethernet), 802.1AT (POE standard over Ethernet)
|
|
Fixed port |
Twenty-four 10/100/1000M adaptive RJ45 ports, supporting remote PoE power supply Four Combo ports 100/1000 adaptive
|
|
Electrical properties mouth
|
Supports the transmission rate of 10/100/1000Mbit/s Supports half-duplex, full-duplex, and auto - negotiation modes MDI/MDIX adaptive support
|
|
Each port: Link/Ack Each device: Power
|
|
|
56Gbps |
|
|
Packet forwarding rate |
41.664Mpps |
|
Store-and-forward mode |
|
|
MAC address table |
8K |
|
PoE Remote Power Supply |
Supports IEEE802.3AF standards Supports IEEE802.3AT standards The maximum output power of each port is 30W The maximum output power of the machine is 400W
|
|
Dimensions (L×W×H)
|
440mm×280mm×44mm |
|
100-240V~50/60HZ |
|
|
Maximum power consumption: 450W (with PoE part)
|
|
|
fan |
|
|
0℃～55℃ |
|
|
5% to 95%, no condensation
|
| Date | Version | describe | Download |
| 2021-12-14 | V1.0 | OL-GS3428CP-4C Datasheet V1.0 | |
| 2021-12-14 | V1.0 | OL-GS3428CP-4C User Manual V1.0 |
