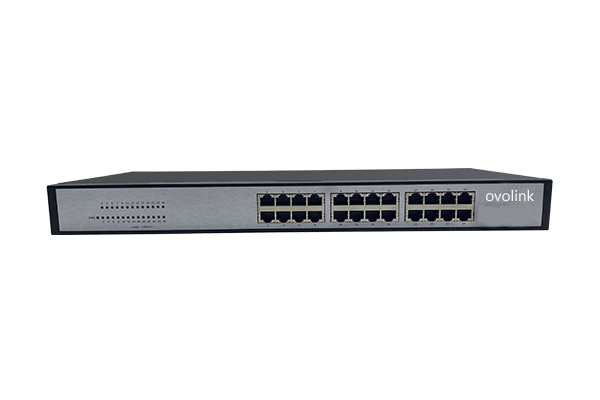

Ovolink S1800 100 megabyte/gigabit series switch (hereinafter referred to as S1800) is a two-layer small and medium-sized enterprise switch launched by Netinovo based on a new generation of high-performance hardware, which uses a low-power, fanless design, complies with RoHS standards, and meets the requirements of green environmental protection. It can be widely used in small and medium-sized enterprises, small offices, Internet cafes, hotels, schools, families and other application environments.

Rich business support capability

All ports of S1800 have Layer 2 wire speed forwarding capability. The rich Layer 2 multicast functions provide good support for the rapid development of IPTV services. The flexible and diverse VLAN functions are suitable for network access in different environments, effectively improving the network security and controllability of users and services.

The S1800 supports rich Layer 2 multicast functions, including IGMP Snooping, IGMPv1/v2, etc., providing good support for the rapid development of IPTV services.

All ports of the S1800 have the two-layer wire speed forwarding capability, and support the fast transmission of large files such as videos and large games. It is an ideal choice to improve the network performance of families and small businesses.

The S1800 supports the uplink of optical port GE, which facilitates flexible access for customers and greatly improves the cost performance of network investment.

Complete security intelligent control strategy

The S1800 can set a wealth of control strategies according to different parameters. To ensure the legitimacy of the access users, the S1800 provides a wealth of MAC address restrictions and control strategies for access users, and supports MAC address display/query/filtering, static (dynamic) MAC address setting and management. It greatly improves the controllability and security of the whole network.

Green environmental protection, energy conservation and emission reduction

The S1800 adopts low power consumption, fanless design, advanced heat dissipation mode, strong adaptability to ambient temperature, and significantly reduces the overall power consumption and noise impact; At the same time, the product design conforms to RoHS standards and meets the requirements of green environmental protection.

Convenient network management function

The Web network management equipment in S1800 can easily operate various functions of the switch through the Web visual interface, which greatly facilitates daily maintenance and use.

Rich network management functions

S1800 supports the management of switches through Web browsers, Telnet, SNMP, etc.
