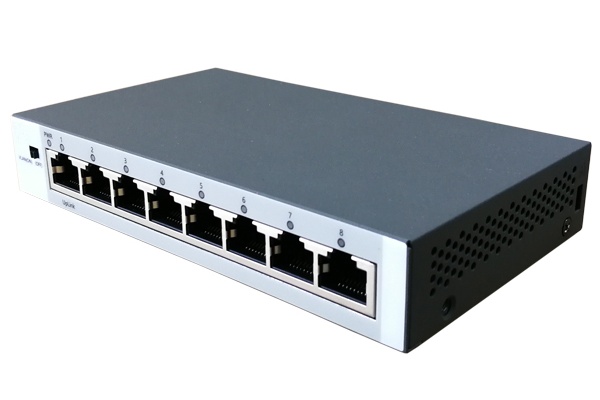

NS208
8-Port 10/100/1000Mbps Gigabit Ethernet Desktop Unmanaged Switch

The netinovo 8-port 10 / 100 / 1000m desktop switch ns208 provides 8 10 / 100 / 1000m adaptive Ethernet ports. All ports support full line speed non blocking switching and automatic port turnover. It is a non network managed switch designed for small and medium-sized enterprises, hotels and communities. It needs no configuration and is plug and play.

  • Overview
  • Specifications
  • Applications
  • Download
  • Related Products
属性 NS208
标准

IEEE802.3 10BASE-T以太网

IEEE802.3u 100BASE-TX快速以太网

IEEE802.3ab 1000Base-T千兆以太网

ANSI/IEEE 802.3 NWay自动协商

IEEE802.3x流控

固定端口

8个10/100/1000M自适应RJ45端口

电口属性

支持10/100/1000Mbit/s传输速率

支持半双工、全双工、自协商工作模式

支持MDI/MDIX自适应

指示灯

每端口:Link/Ack

每设备:Power

交换容量 16Gbps
包转发率 11.9Mpps
交换模式 存储转发模式
MAC地址表 4K
VLAN 支持拨码开关一键端口隔离
外形尺寸(L×W×H) 176mm×125mm×27.5mm 铁壳,黑色
输入电压

100-240V AC

12V/0.5A DC

功耗 整机最大功耗:6W
工作温度 0℃~40℃
工作湿度

5%~95%,无冷凝

application:

DateVersiondescribeDownload
2021-12-14 V1.0 Ns208 product specification v1.0 PDF
